Auxiliary unit SESUK-RWR0INNN4 RSD SolarEdge
Manufacturer: SolarEdge
INDEX: SESUK-RWR0INNN4

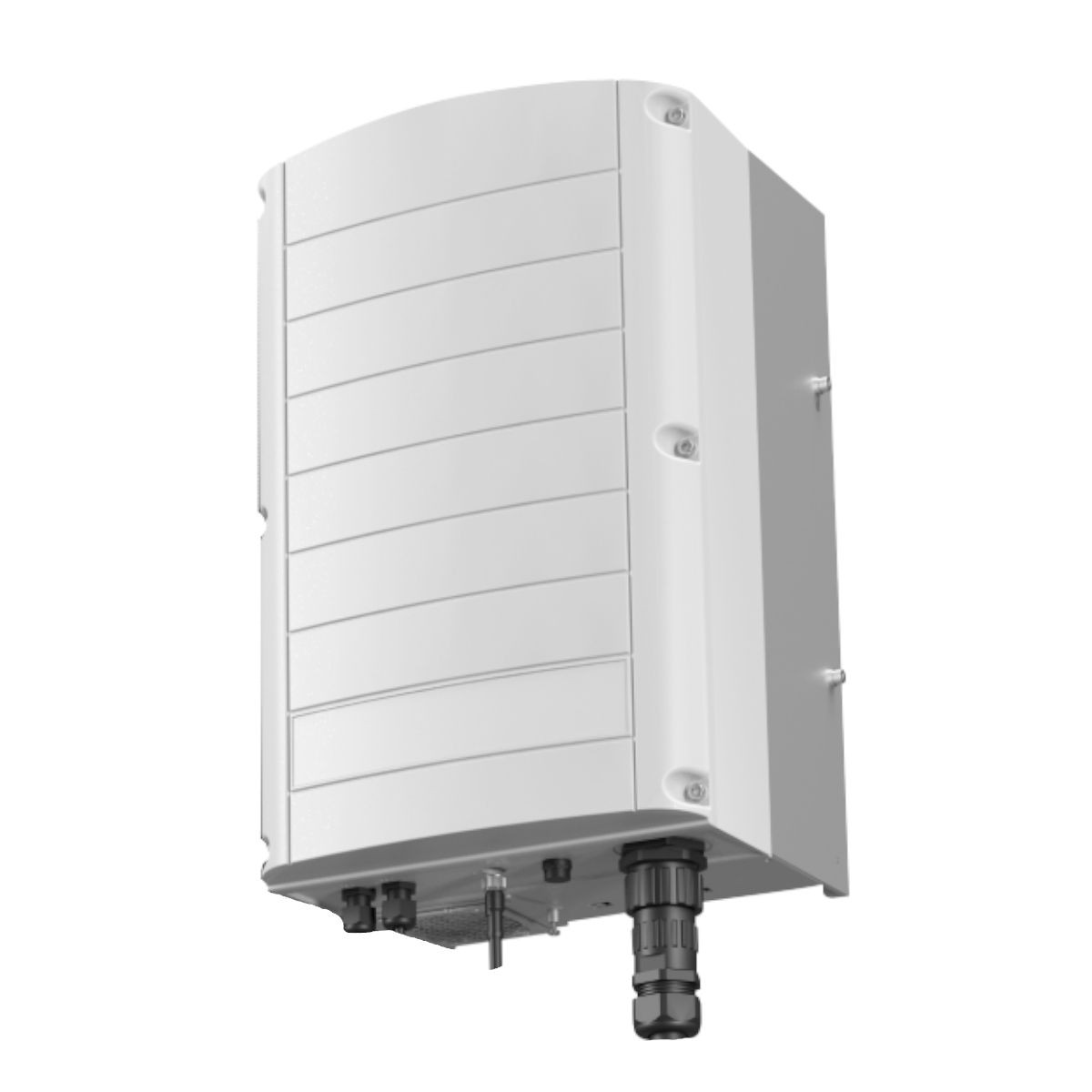

The SESUK auxiliary unit is an external component of the SolarEdge system that uses Synergy technology. Such a system consists of auxiliary units and a three-phase inverter.

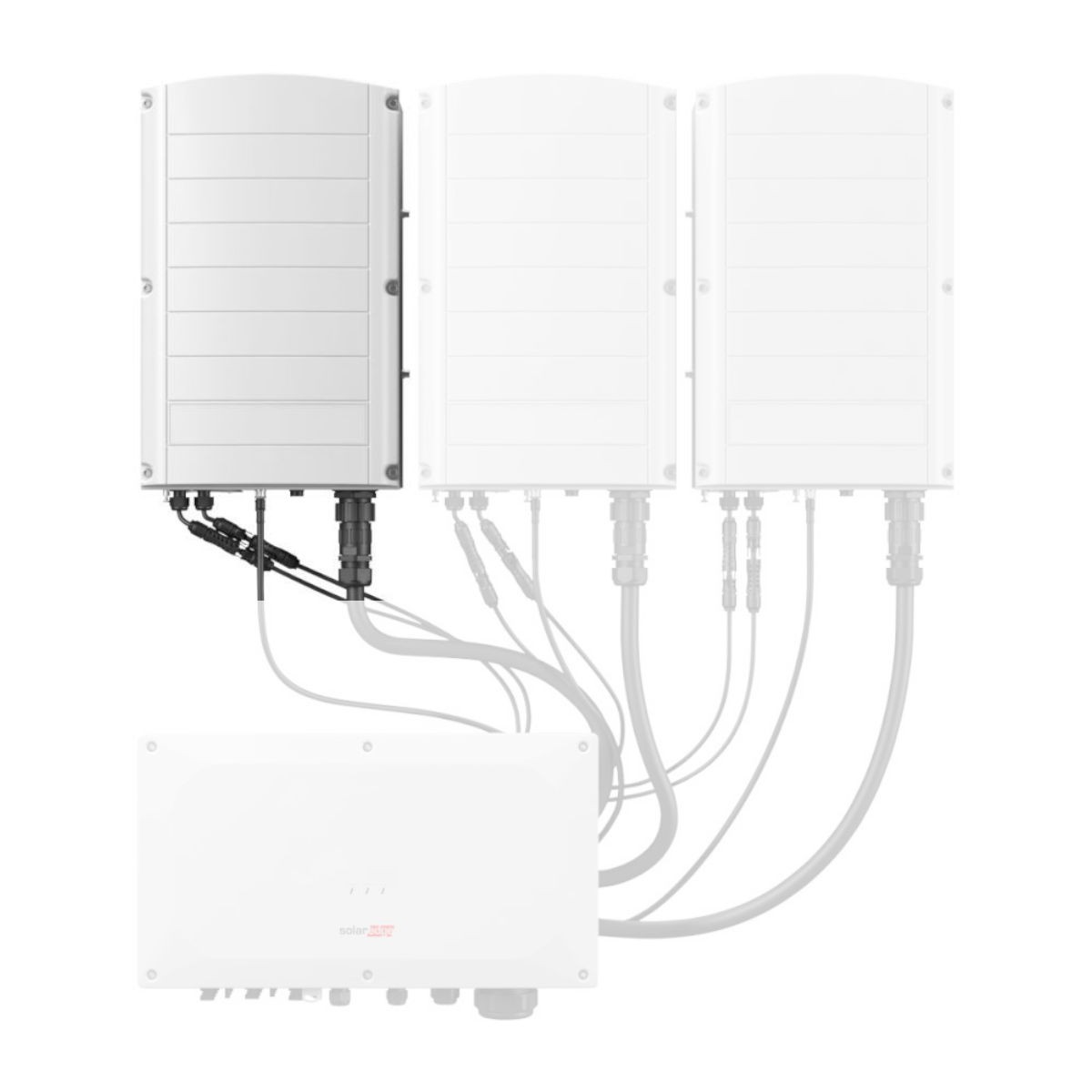

SESUK-RWR0INNN4 is used to build a complete three-phase SolarEdge Synergy system, for commercial applications, with a power range from 50 kW to 120 kW and allows for scaling. For systems from 50 kW to 66.6 kW, two auxiliary units + inverter are required. For systems from 90 kW to 120 kW, three auxiliary units + inverter are required.
The RWR0INNN4 model is equipped with a rapid shutdown function in case of AC grid power loss, thus disconnecting the power on the DC side.
| Weight [kg]: | 28.4 |
|---|---|
| Dimensions [mm]: | 558 x 273 x 328 |
| Max. voltage [V]: | 1000 |
|---|---|
| Max. current [A]: | 48.25 |
| Feed-in phases: | 3 |
|---|
| Euro efficiency [%]: | 98 |
|---|---|
| Max. efficiency [%]: | 98.3 |
