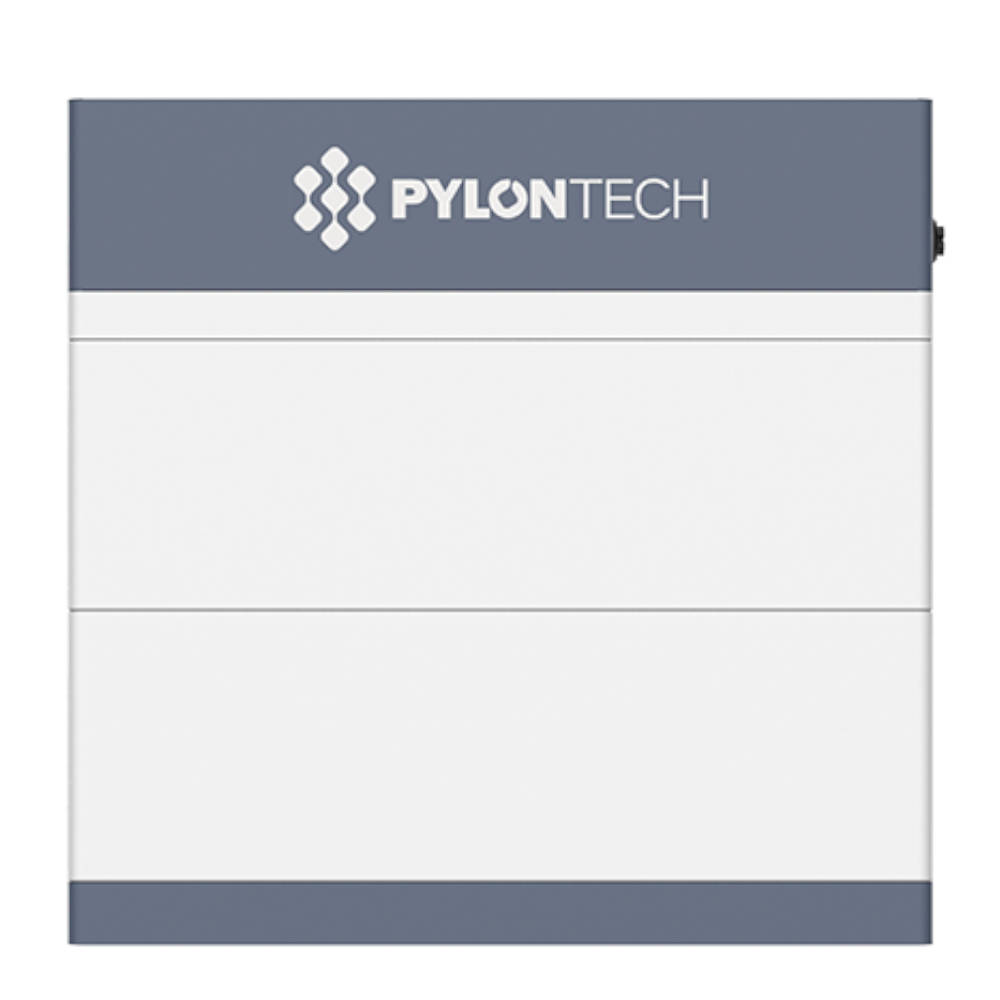

Battery module for Force H3 Pylontech battery pack
Manufacturer: Pylon Technologies
INDEX: FH10050
FH10050 Pylontech is a battery module used to build the Pylontech Force H3 energy storage system. The module is built with LFP technology and has a nominal voltage of 102.4 V DC. The module's usable capacity is 4.85 kWh and its guaranteed lifespan is 8000 cycles. The module works with the energy management system BMS, model FC1000 Pylontech.
- Modular design provides power flexibility
- LFP technology, long lifespan and top safety
- Plug-and-play structure saves installation time
- Long module life cycle, up to 8000
- Designed for small spaces. Suitable for both indoor and outdoor installations
- Proven solar energy storage system with broad inverter compatibility
Attention! When operating in multi-group mode, ensure that the battery type across the system and the number of batteries in each group are the same!
The guarantee of battery module performance, including lifetime > 8000, is valid for a period of 10 years and begins at the earlier of the following:
1. the date of Product installation; or
2. twelve (12) months after the date of Product manufacture.
| Cycle life: | 8000 |
|---|---|
| DC battery operating voltage [V]: | HV |
| Design life (years): | 15 |
| DoD depth of discharge [%]: | 95 |
| Battery Scalability: | do 7 jednostek |
| Battery technology: | LFP |
| Communication type: | Modbus RTU, CANBUS |
| Weight [kg]: | 39 |
| Dimensions [mm]: | 540 x 350 x 170 |
| Battery capacity [Ah]: | 50 |
|---|---|
| Charging/discharging powerkW: | 5,12 |
| Maximum continuous charging current [A]: | 50 |
| Nominal battery voltage [V]: | 102,4 |
| Nominal capacity at 25 oC [Ah]: | 5.12 |
| Recommended charge current [A]: | 10 |
| Recommended continuous discharge current [A]: | 10 |
| Usable capacity [kWh]: | 4.85 |
| Maximum continuous discharge current [A]: | 50 |
