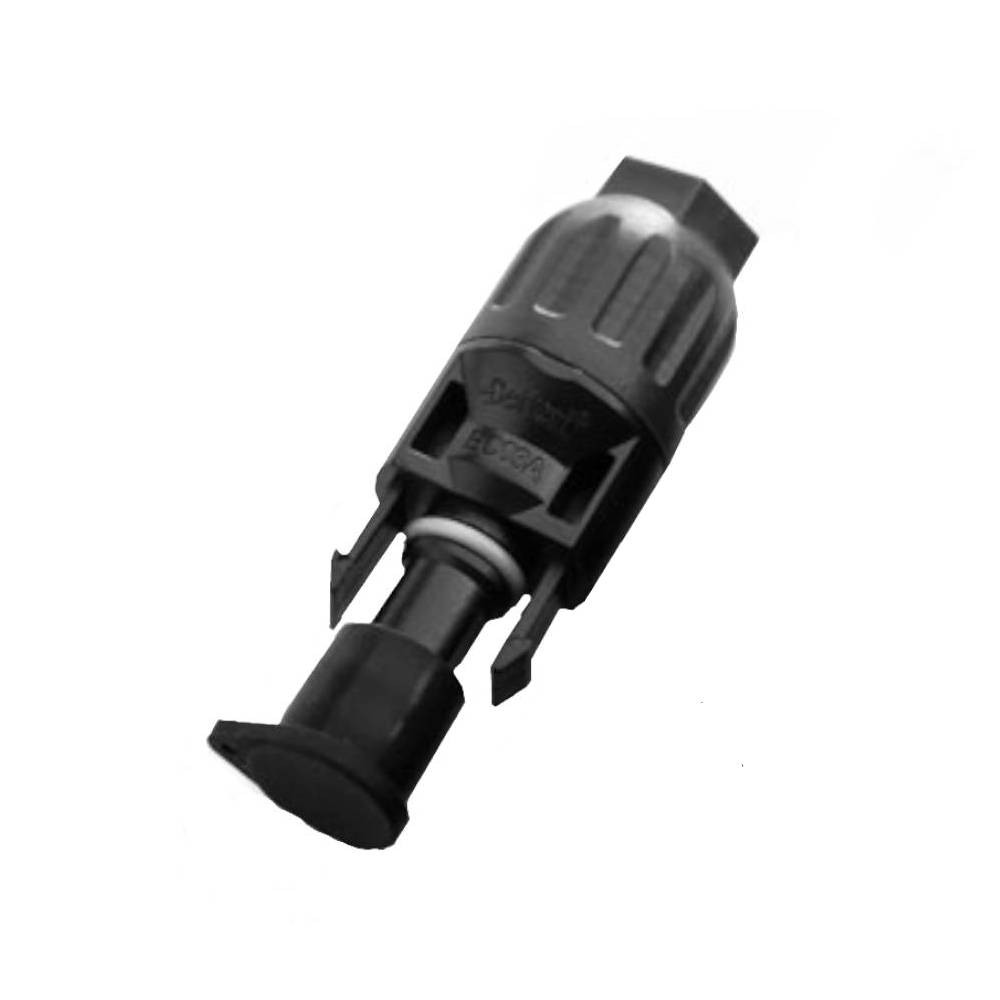

BC03A Male Photovoltaic Connector for Hoymiles
Manufacturer: Hoymiles
INDEX: A3080013
The BC03A DC photovoltaic connectors are used for making DC cable connections in photovoltaic installations based on Hoymiles microinverters. These connectors are compatible with standard MC4 connectors. The use of high-quality plastic ensures reliable performance and long lifespan. Each photovoltaic connector is TUV and CSA certified.
Key features of the product:
- Rated voltage:1000V
- Rated current:30A
- Contact resistance: ≤0.5mΩ
- Mechanical endurance: ≥250 times
- Waterproof Rating: IP67(1M，1H)
- Flammability Rating: UL94-V0
- Applicable wire gauge: 2.5/4.0/6.0mm2
- Outer cable diameter(OD): 5-6.8mm
| Dimensions [mm]: | 59 x 19 x 19 |
|---|
| Max. voltage [V]: | 1000 |
|---|---|
| Max. current [A]: | 30 |
