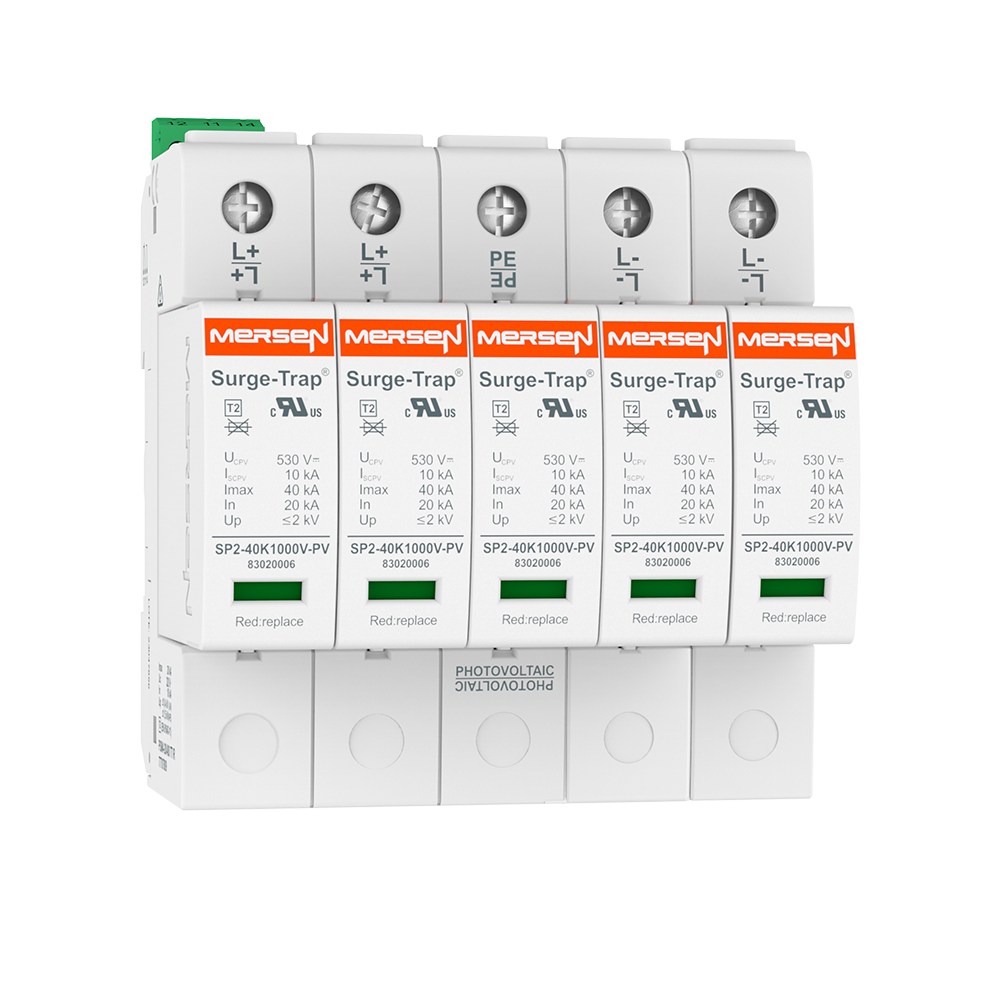

DC 40 kA 1000 V 5P T2 surge arrester Mersen
Manufacturer: Mersen
INDEX: 83020223

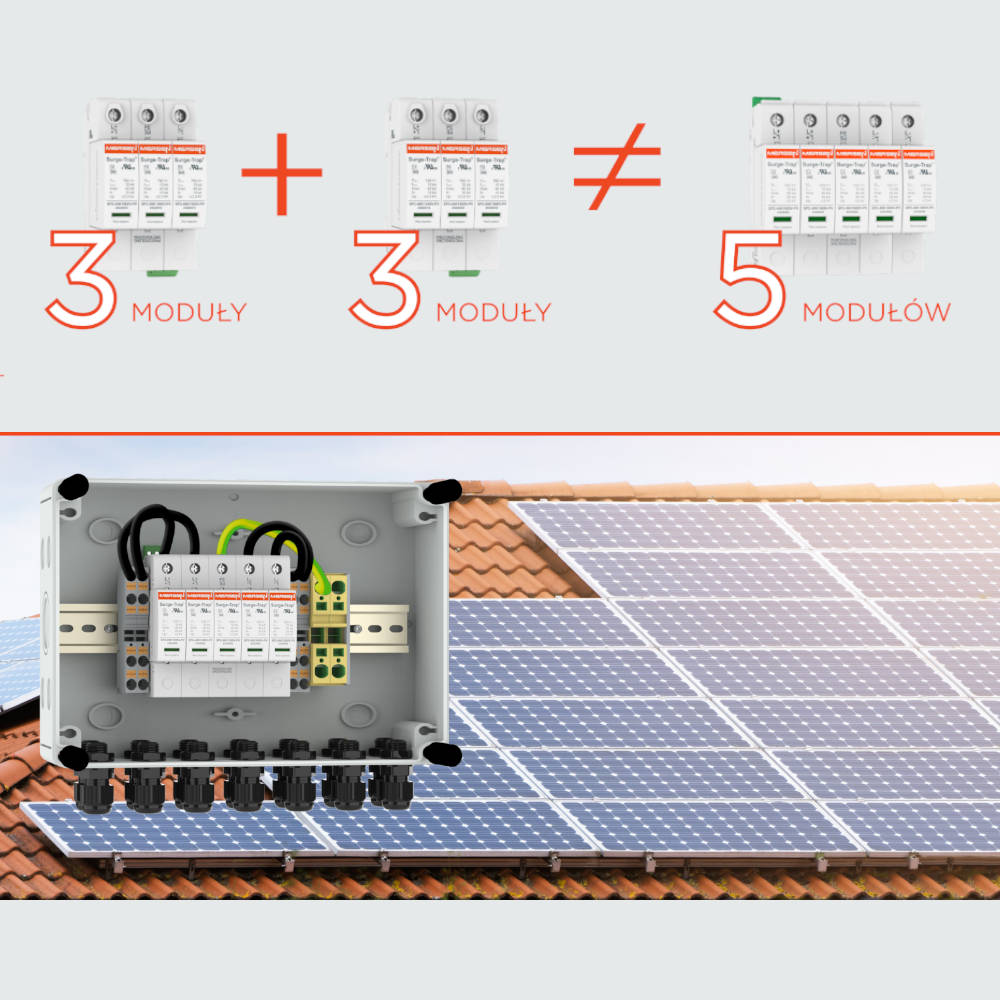

The STP T2 40 5Y2PVM surge arresters are a group of devices for installation in standard electrical distribution boards, dedicated for use with photovoltaic installations on the DC supply side. These five-pole surge arresters are specifically designed for PV systems with two MPPTs for DC voltages up to 1000 V and for combining multiple strings.
The task of the STP 5Y2PVM Type 2/Class II, 5-pole surge arresters is to discharge induced voltage surges (8/20μs). Fully compliant with IEC 61643-31, EN 50539-11 and UL 1449 standards.
The STP T2 40 5Y2PVM surge arresters use a thermodynamic disconnection system, eliminating the need for additional backup fuses thanks to their high resistance to short-circuit currents. DIN rail mounting. Ideal for building complex photovoltaic systems.
Key product features:
- VDC 1060 V
- Supports up to 2 MPPTs, multiple strings
- Multipole MPPT SPD
- Maximum discharge current (8/20μs): 40 kA
- Nominal discharge current (8/20μs): 20 kA
- Ucpv: 65, 80, 660, 1060 Vdc and 1500 Vdc
- Iscpv: 10 kA (EN 50539-11), no backup fuse required
- SCCR: 50–100 kA (UL 1449, 4th edition)
- Remote signalling contact
- DIN rail mounting
- Visual wear indicator
- Reversible housing, allows inverted installation
- Mechanically coded cartridge to avoid replacement errors
- Space-saving design
| Width - number of modules: | 5 |
|---|---|
| Weight [kg]: | 0.58 |
| Dimensions [mm]: | 87.5 x 90 x 70 |
| DC protection type: | DC Surge arrester |
|---|---|
| Max. voltage [V]: | 1000 |
| Max. current [A]: | 40000 |
