Batteries

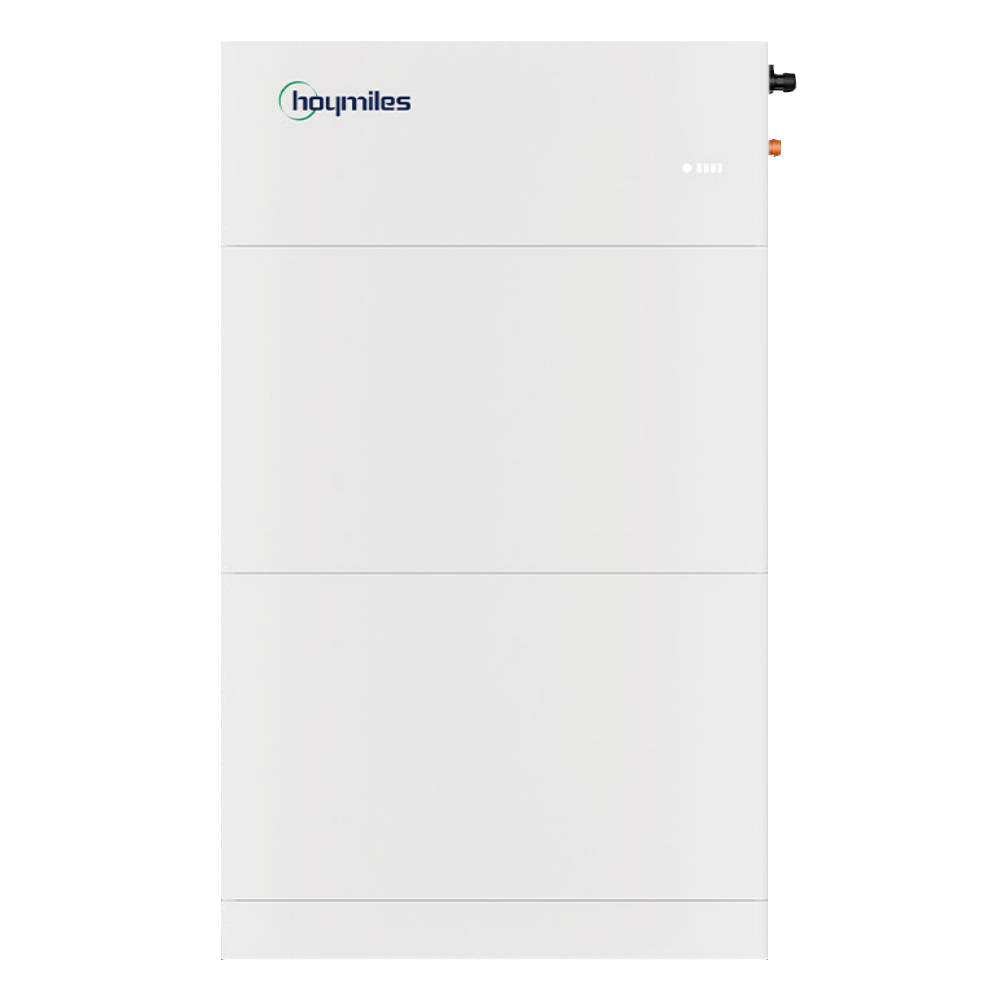

Low-voltage accumulator LB (5-20)S-G2 Hoymiles
Manufacturer: Hoymiles
INDEX: LB(5-20)S-G2
OFFICIAL PRODUCT LAUNCH PLANNED FOR 2026
LB 5S-G2 series are low-voltage, deep-cycle batteries built using LFP technology, making them safe and durable, designed for energy storage systems from 5 to 20 kWh. Their main purpose is to increase self-consumption in households by storing surplus energy generated by a private PV installation during periods of low usage, but also from the grid, e.g. during off-peak tariff times.
Hoymiles energy storage systems using the LB 5S-G2 battery series are simple in structure, modular, and easy to expand and maintain. They are specifically designed for residential use. The IP66 protection rating allows flexible installation options, greatly simplifying the commissioning process. The system operates in a wide temperature range, from -20 to +50°C. All operating parameters are available online via the S-Miles Cloud app.
Key product features:
- LFP technology
- Flexible capacity options from 5.12 kWh to 20.48 kWh per cabinet (4 modules)
- Up to 6 cabinets can be connected for up to 102.4 kWh (5 full towers)
- 90% DOD
- Fire hazard detection at module level
- Plug and play system, easy installation and expansion
- IP66 protection rating
- Operating range from -20 to +50°C
- Automatic module heating at low temperatures
- Data access via Hoymiles S-Miles Cloud
- Compatible with EV chargers
- C-rate: 0.5C
- 10-year warranty
| Battery capacity [Ah]: | 100 |
|---|---|
| Charging/discharging powerkW: | 2.56 |
| Maximum continuous charging current [A]: | 50 |
| Nominal battery voltage [V]: | 51,2 |
| Usable capacity [kWh]: | 5.12 |
| Battery Voltage Range [V]: | 44,8 – 58,4 |
| Maximum continuous discharge current [A]: | 50 |
| Cycle life: | 6000 |
|---|---|
| DoD depth of discharge [%]: | 90 |
| Battery Scalability: | do 4 jednostek |
| Battery technology: | LFP |
