Industrial kits

Name: SOFAR CBS5000 60 kWh Energy Storage + 30 kW 3-Phase Inverter Pro HV
Brand: Sofar
SKU: CBS5000-60-HYD30T1
Availability: SoldOut

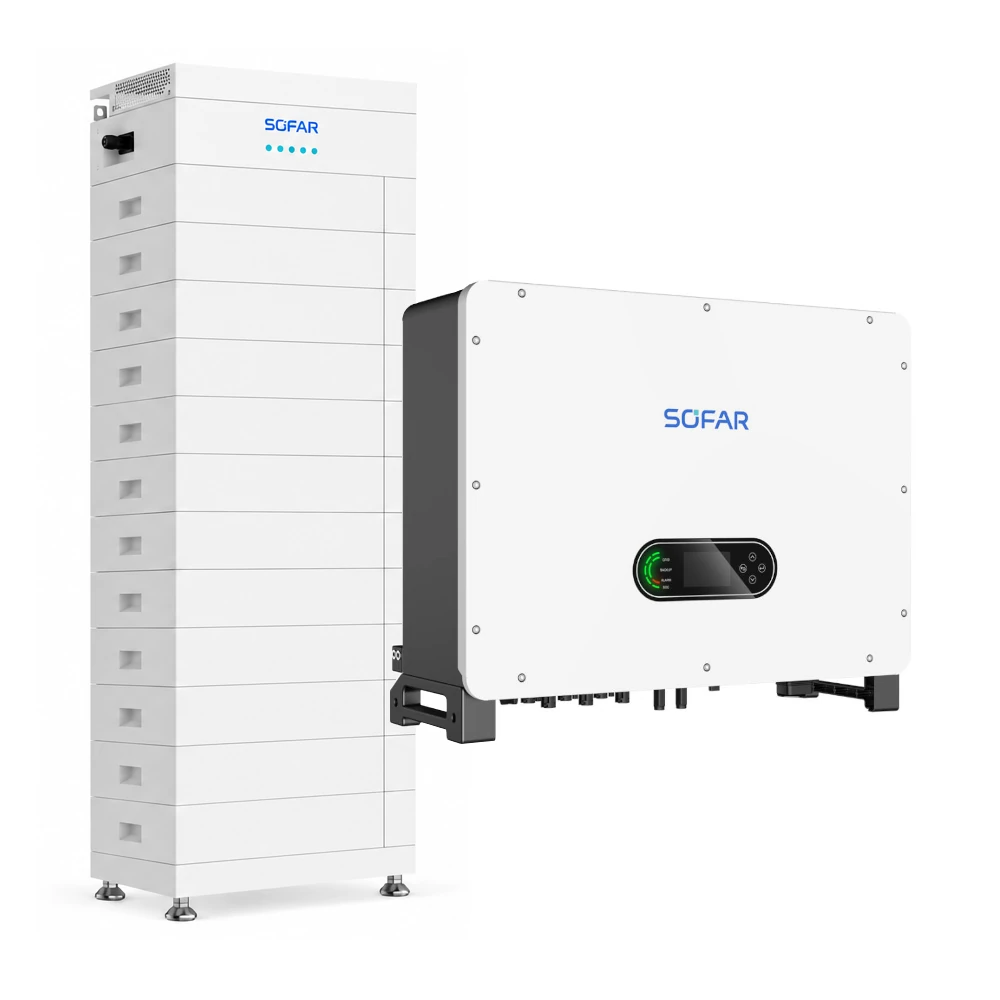

SOFAR CBS5000 60 kWh Energy Storage + 30 kW 3-Phase Inverter Pro HV

Manufacturer: Sofar

INDEX: CBS5000-60-HYD30T1

Product information "SOFAR CBS5000 60 kWh Energy Storage + 30 kW 3-Phase Inverter Pro HV"

The energy storage system with the SOFAR HYD30K-T1-PLUS three-phase hybrid inverter and a battery storage based on the SOFAR CBS5000 system with a capacity of 61.44 kWh is a modern solution for companies, commercial buildings and industry. The kit allows efficient management of energy from a photovoltaic installation, increases self-consumption and reduces the cost of buying energy from the grid. By storing surplus energy, the user gains greater energy independence and security of supply.

The SOFAR HYD30K-T1-PLUS + CBS5000 61.44 kWh kit includes:

1 x hybrid inverter HYD30K-T1-PLUS Sofar
12 x battery module CBS5000-BMU 5.12 kWh Sofar
1 x control module CBS5000-BCU Sofar

If you would like to expand the kit or prepare a custom configuration, please contact your sales representative.

NOTE! Do you have questions about choosing an energy storage system? Contact us. We will help you choose a solution that matches your energy consumption profile.

Energy storage and increased self-consumption are among the most effective ways to improve a company's energy efficiency. The kit based on the SOFAR HYD30K-T1-PLUS and the CBS5000 61.44 kWh battery system stores energy produced by the PV installation and makes it available when it is needed most. The solution works well wherever reducing energy costs, increasing independence from the grid and improving the energy security of the site are important.

The SOFAR CBS5000 battery system uses safe LiFePO₄ (LFP) technology, which ensures high durability, stable operation and a long service life. The kit, consisting of twelve BMU modules and a BCU control unit, offers a total capacity of 61.44 kWh. The modular design allows the system to be expanded as the site's energy demand grows.

The SOFAR HYD30K-T1-PLUS hybrid inverter is a modern device designed to work with high-voltage energy storage systems. It enables intelligent management of energy flow between the PV installation, the energy storage, loads and the grid. It supports self-consumption optimisation, energy management and integration with monitoring and EMS systems. Thanks to its high efficiency and reliability, it is ideal for commercial and industrial applications.

Who is this kit for?

companies and commercial buildings,
industry,
users with a PV installation who plan to increase self-consumption,
sites with high energy consumption in the evening and at night,
investors planning a step-by-step expansion of their energy storage system.

Key parameters of the kit:

Inverter power: 30 kW
Inverter type: three-phase hybrid
Energy storage capacity: 61.44 kWh
Cell technology: LiFePO₄ (LFP)
Number of battery modules: 12
Battery management system (BMS)
Expandable energy storage
Application: commercial, C&I

Charging/discharging powerkW:	24.6
Cycle life:	6000
DC battery operating voltage [V]:	HV
Maximum continuous charging current [A]:	50
Nominal capacity [kWh]:	61.44
Power [W]:	30000
Min. MPPT voltage [V]:	160
Max. MPPT voltage [V]:	950
Initial feed-in voltage [V]:	200
Number of MPPT inputs:	3
Feed-in phases:	3
Battery Scalability:	do 12 jednostek
Battery technology:	LFP
Maximum continuous discharge current [A]:	50
